High-Performance Order Storage

High-Performance Order Storage (HPOS) (previously known as Custom Order Tables) is a solution that provides a simple-to-understand, solid database structure — specifically designed for ecommerce needs.

It uses Woo’s Create, Read, Update, Delete (CRUD) design to store order data in custom tables optimized for WooCommerce queries — with minimal impact on the store’s performance.

In January 2022, we published our initial plan for the Custom Order Tables feature and since then, we’ve been working hard to bring HPOS to WooCommerce core. In May 2022, we invited users to test the order migration process and provide feedback on how our initial work performed on real stores with varied configurations.

What’s new with High-Performance Order Storage?

↑ Back to top

Bringing HPOS to WooCommerce improves three properties that are essential for ecommerce stores:

1. Scalability
   The rise in the number of customers and customer orders increases the load on your store’s database — making it difficult to handle customer order requests and deliver a seamless user experience. With High-Performance Order Storage, you get dedicated tables for data such as orders, order addresses, and dedicated indexes, resulting in fewer read/write operations and fewer busy tables. This feature enables ecommerce stores of all shapes and sizes to scale their business to their maximum potential — without requiring expert intervention.
2. Reliability
   HPOS makes implementing and restoring targeted data backup simpler. You’ll no longer need to worry about losing orders, inventory numbers, or client information due to reliable backups in these custom order tables. It’ll also facilitate implementing read/write locks and prevent race conditions.
3. Simplicity
   You no longer have to go through a single huge database to locate underlying data and WooCommerce entries. With HPOS, you can browse through the separate tables and simple-to-handle entries, independent of the _posts table, to find data or understand the table structure. It also lets you develop new extensions, implement designs for shops and products, and modify WooCommerce with more flexibility.

Background

↑ Back to top

Before version 8.2, WooCommerce relied on the _post and _postmeta table structures to store order information.

Now, HPOS introduces dedicated tables for data such as orders, order addresses, and dedicated indexes. This results in fewer read/write operations and fewer busy tables. This feature enables ecommerce stores of all shapes and sizes to scale to their maximum potential.

Order data is synced from the _posts and _postmeta table to four custom order tables:

• _wc_orders
• _wc_order_addresses
• _wc_order_operational_data
• _wc_orders_meta

How to enable High-Performance Order Storage

↑ Back to top

HPOS is enabled by default for new installations from WooCommerce 8.2 onward. Existing stores can switch from WordPress posts storage to High-Performance Order Storage by following the steps below.

To activate HPOS, existing stores will first need to get both the posts and orders table in sync:

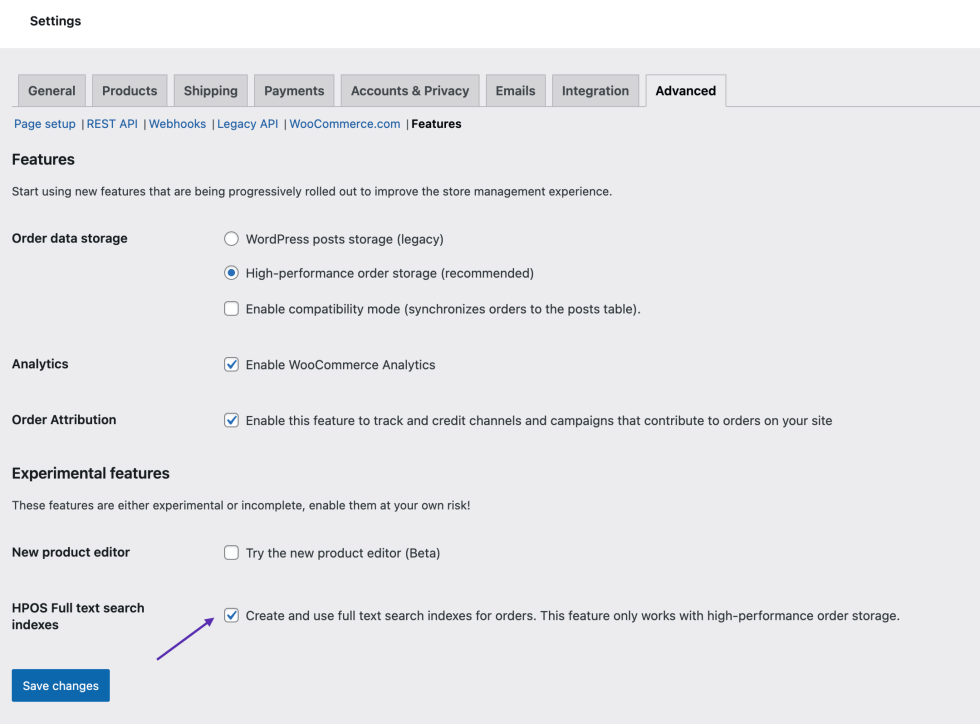

1. In WP Admin, navigate to WooCommerce > Settings > Advanced > Features

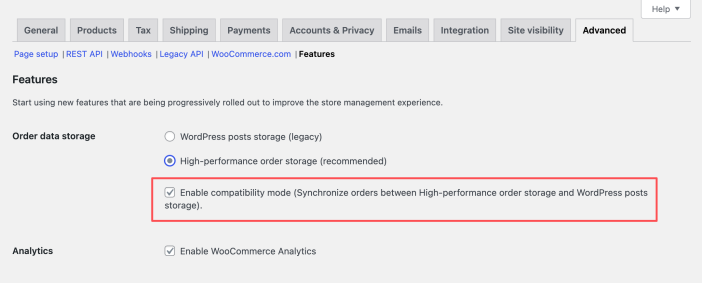

2. Tick the Enable compatibility mode (synchronizes orders to the posts table) checkbox.
3. Once this setting is enabled, background actions will be scheduled.
   • The wc_schedule_pending_batch_process action checks whether there are orders that need to be backfilled.
   • If there are, it schedules another action (wc_run_batch_process) to backfill these orders to post storage.
   • You can either wait for these actions to run on their own (which shouldn’t take long), or you can go to WooCommerce > Status > Scheduled Actions, find the actions, and click the Run button.
   • This action will backfill 25 orders at a time; if there are more orders to be synced, further actions will be scheduled once the previous actions are completed.
4. After both tables are successfully synchronized, you’ll be able to select the option to switch to HPOS.
   • It is advisable to maintain compatibility mode for some time to ensure a seamless transition. In case of any issues, reverting to the _posts table can be done instantly.

Alternatively, you can also use the command-line interface (CLI) command wp wc cot sync to copy orders from the _posts table to HPOS tables. This command will automatically identify the appropriate table for data transfer based on the authoritative table setting.

Order data storage

↑ Back to top

You can switch between data stores freely to sync the data between the tables.

• If you select the WordPress posts storage (legacy) option, the system will save the order data within _posts and _postmeta tables. Order tables are not utilized in this scenario.

• If you select the High-performance order storage (recommended) option, the system will save order data within the new WooCommerce order tables.

• If you select the WordPress posts storage (legacy) option and tick the Enable compatibility mode checkbox, the system will sync order data between the _posts, _postmeta, and WooCommerce order tables.

Synchronization

↑ Back to top

When the High-performance order storage (recommended) and compatibility mode options are both selected, WooCommerce populates the HPOS tables with data from _posts and _postmeta tables. Learn more about synchronization between different tables.

Handling Custom Post Types During HPOS Migration

↑ Back to top

Before activating High-Performance Order Storage, make sure that any extension on your site that use custom post types (eg., Woo Subscriptions, WooCommerce Bookings, etc), are active. Deactivating these extensions before transitioning order data to HPOS can lead to data discrepancies.

These extensions store data in the WordPress posts table. When HPOS is enabled, order data is moved to new, optimized HPOS tables. If an extension is reactivated post-migration, this could create data discrepancies, as the original data remains in the posts table and is not recognized by the system, which now looks in the HPOS tables. To prevent such issues, keep the extensions that utilize custom post types active when enabling HPOS.

If you have already deactivated the extension and enabled HPOS, follow these steps to correctly migrate the order data:

1. Go to WooCommerce > Settings > Advanced > Features.
2. Switch the Order Data Storage back to WordPress post storage and allow the sync to complete.
3. Then, switch to High-Performance Order Storage.

Incompatible extensions

↑ Back to top

If you are using an extension that is not compatible with HPOS, this option will be disabled in WP Admin under WooCommerce > Settings > Advanced > Features.

• Click the View and manage link to review the list of incompatible extensions.
• You can also visit https://example.com/wp-admin/plugins.php?plugin_status=incompatible_with_feature&feature_id=custom_order_tables to review the list of incompatible extensions (replace example.com with your site domain).

Disabling HPOS

↑ Back to top

If you encounter problems, or if you need to continue working with extensions that are not yet HPOS-compatible, we recommend temporarily switching back to WordPress posts storage (legacy) for the Order data storage setting.

To do this, navigate to WooCommerce > Settings > Advanced > Features and ensure that compatibility mode is enabled. If this was not already enabled, you may need to wait while order data is synchronized across data stores.

Once synchronization is complete, select WordPress posts storage (legacy) as your preferred option; you can also disable compatibility mode at this point. Once you are ready to re-enable HPOS, simply follow the instructions posted at the beginning of this doc. Finally, remember to save this page between changes!

As noted earlier, we also strongly recommend reaching out to the support teams for any incompatible extensions so they can take corrective action.

Upgrading for developers

↑ Back to top

If you or your team needs to update your store’s custom code, extensions, or anything related to HPOS, check out our Upgrade Recipe Book to find all the technical details.

Frequently Asked Questions (FAQs)

↑ Back to top

I have an existing store but don’t want to enable HPOS. Do I need to?

↑ Back to top

No problem! While we do encourage everyone to switch to HPOS to enjoy the full benefits of a faster checkout experience for your customers, we understand that not everyone will want to try it right away. The feature is completely opt-in and you will be able to switch anytime.

My favorite extension is not compatible with HPOS; what should I do?

↑ Back to top

We have actively communicated the upcoming HPOS changes with our developer community. We have several blog posts, guides on how to update extensions in GitHub, and full documentation. Despite our best efforts to encourage extension developers to make the switch, some developers may not accommodate HPOS. If one of your extensions is incompatible, we strongly recommend that you reach out to the respective developer’s support team and ask them to make the update. You will continue to be able to use the extension without HPOS if you already have it installed.

Can small businesses use HPOS or is it only meant for larger businesses?

↑ Back to top

Businesses of all sizes will benefit from High-Performance Order Storage.

I have a high-volume store on WooCommerce. How does this impact my store?

↑ Back to top

Existing stores will not be migrated over to HPOS automatically. The feature is completely opt-in. You can enable HPOS by following the steps mentioned above.

Are there any specific hosting requirements or limitations for using HPOS?

↑ Back to top

There are no hosting restrictions. Any host that is able to run WordPress and WooCommerce should have no trouble running HPOS. This should even increase performance in a number of ways after it is enabled. Learn more about server requirements for WooCommerce.

For more technical insight, take a look at our developer blog FAQ.
