Product Table for WooCommerce

The Product Table extension for WooCommerce lets you list products and represent them as a responsive table. Is perfect for product list views, order forms, wholesale, product catalogues.

Getting started ↑ Back to top

Product Table Installation ↑ Back to top

The Product Table extension for WooCommerce required both versions of the plugin installation.

To install the Free version of the plugin follow the next steps:

  1. In the left admin panel of WordPress, click Plugins > Add New.
  2. Search for “WooCommerce Product Table by WooBeWoo” and click “Install”. When the installation is completed, click “Activate Plugin”.
  3. You will see a new plugin, ready to work in the admin menu.

To install the PRO version of the plugin follow the next steps:

  1. Download the zip archive with PRO version
  2. Navigate to Plugins > Add New > Upload the archive > Activate Plugin.
  3. After activation of the PRO version, move to WooCommerce -> Subscription
  4. Connect to WooCommerce.com if you are not connected
  5. Search for Product Table for WooCommerce and press “Active”.

Create a new table ↑ Back to top

The plugin uses the product data already created with WooCommerce (WooCommerce > Settings > Products ). This means that you can add products to WooCommerce manually or import them using a CSV/XML import, and they will be displayed in the product table.

Now, let’s go ahead and create our first table:

  1. Click “Add new table”
  2. Enter the title of the table.
  3. Select the products or skip this step.
  4. Click “OK”.

Add products to the Product table ↑ Back to top

Manually

Select the necessary items and add them to Manage Table Content.

You can select all the products at once or filter them by:

  • category
  • attribute
  • author
  • tag
  • in a table: yes/no

and sort product in order by

  • name
  • SKU
  • price
  • date and other parameters

Searching by keyword is available.

Also, here you can find checkboxes with the following parameters:

  • only current attribute – filter by attribute will display the single attribute exactly matches the search criteria.
  • show variation – display the variation of the variable product separately.
  • show private – display private products on the list.

Automatically

The way to easily add products automatically to the Product Table by category – just choose categories from the drop-down list:

If you add products in this way, you don’t need to edit table un future, adding new products. All the new products you will add to your shop will be automatically added to the table according to the selected category.

Set the product table properties ↑ Back to top

You can select the column of the product data you need to display and add it into the table.

Available columns are:

  1. Thumbnails
  2. Name
  3. Featured
  4. SKU
  5. Categories
  6. Attributes
  7. Summary
  8. Rating
  9. Stock status
  10. Date
  11. Price
  12. Buy
  13. Short description
  14. Sales
  15. Downloads
  16. Sale Price dates
  17. Product link
  18. Tags
  19. Custom fields

You can click an edit column to set the edition settings.

Click the Save button and check the created Product table in preview mode.

Make the other settings. More detailed information about the features you can find below.

There are 2 different ways to add a table to your site using code: table shortcode and table PHP code.

Table shortcode can be found on the left navigation menu if you click “Show All Tables”.

Or you can also find shortcodes in the table settings in the top left of the panel. Simply choose a necessary code from the drop-down menu and copy the code.

Copy Table shortcode and paste into the page content.  PHP code can be inserted at any place of the page code.

Product table columns settings ↑ Back to top

Once you selected and added columns to the table, you can click on the “Pencil” icon to edit column properties.

All columns have similar settings, some of them have additional properties.

Here is a list of column properties you can setup:

Name. Use the default title of the column or rename it and enable the field for the custom title.

Column width. This setting sets the maximum width for the column, but the rest of the table content also affects its width – check how it looks on Preview.

Enable “Hide/show on small screens” if you want to make this column hidden. The screen size you can set in the Appearance tab:

Check the last setting if you need to open the link on a new window.

Show product link – disable is you don’t need to make name clickable.

Responsive mode thumbnail size (for Thumbnails) – Set the size in the pixels to display full-size thumbnails on mobile.

Cut description text (for Summary and Short description) – set the number of characters of text to display in the column.

Show icons/text -(for Stock Status) – select in which way to display status – as an icon, text or both.

Show quantity items in-stock (for Stock Status) – display the quantity of available product. The option works with variable products too.

Show as an icon, text or image (for Features). You can select the icon or upload the image to display

Display download link as an iconbuttonlinkaudiovideo (for Downloads). For displaying links you need to fill up the downloadable files form in product settings.

Note: all the features values are synced with WooCommerce, so you can’t edit its content directly; to manage any of them, you need to change product properties via WooCommerce Product editing.

Product Table Settings ↑ Back to top

In the Settings tab, you are able to add additional functions to improve the functionality of the table.

Main settings ↑ Back to top

Here you are able to set the table elements:

Caption. Check if you want to show the name of the table above the table.

Product Table Caption

Description. You can add a short description to the table between title and table.

Signature. You can add a signature under table footer.

Header. Check if you want to show the table head.

Footer. Check if you want to show the table footer.
Footer

Fixed Header allows fixing the table’s header during table scrolling.

Important! Header option must be enabled for using this feature.

Date. Let the output format for the date. For example: y-m-d- 1991-12-25, d.m.y – 25.12.1991

Time / Duration. The set output format for time and duration. For example: 1) time – H:m – 18:00, h:m a – 9:00 pm 2) duration h:m – 36:40, h:m:s – 36

Features ↑ Back to top

Here you can activate additional functions to work with the table:

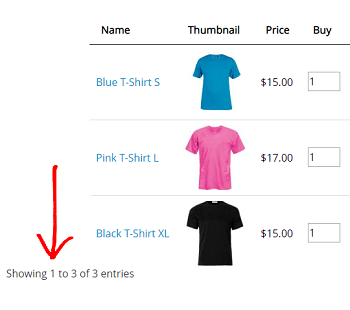

Table information. Show pagination information after the table.

Sorting.  Allow dynamic sorting with arrows. To use this option you must enable Header option.

Auto-sorting – select the column you want to be sorted by default the page first loads.

Auto-sorting descending. The default is the 1st column and “Ascending” order for the sorting. Enable the checkbox if you want to sort by descending.

Custom sorting. Enable the checkbox if you want to add a sort by drag-n-drop from the admin table preview to the frontend. To set the custom sorting, move to the Content tab, add the products to the table, and drop and drag them in the exact order you need:

Moreover, you can set the order for the product manually. You can easily replace the item to the necessary position. It is a more convenient way if the table contains a big number of products. Also, this is the only way to move the product to the next or previous page due to pagination.

The order will be saved in the way you set it and will display in a table.

Pagination. Show table pagination.


Pagination menu if you’d like to show the drop-down list to select the number of products on the page for display.

If Pagination menu is enabled, in Pagination list content you can set the number of rows to display on one Pagination page. Establish several numbers separated

by a comma to let users choose it personally. The first number will be displayed by default. Since that the number of Pagination Pages will be recounted also.

If Pagination menu is disabled, set the number of products to display on one page in Products per Page option.

Server-side Processing – this option is recommended for large tables that cannot be processed in a conventional way. The table will be sequentially loaded by ajax

on a per-page basis, all filtering, ordering and search clauses is server-side implemented too.

Searching. Enable to add an instant search by keywords.

Search by Columns. Add search by table columns. Use a semicolon as a separator to select any of the values.

Print. Print the product data straight away from the table in one click.

Also, you can save your table as PDF file by choosing to save as pdf at the new window in destination settings.

Print captions. If enabled, you can print the table caption, description and signature.

Hide the out of stock items helps you to hide all of the products that do not available.

Show private products feature needs to display products on the front-end.

Show variation thumbnails – if you have different pictures for a variable product, the thumbnail will be changed that the user selects the variation.

Show the first variation as default – preselection of variation for variable products instead of the name of an attribute.

Show variation price in price column – the price of selected variation will be in the Price column instead of the price range +  price of the selected variation in Buy column.

Add all to cart feature allows you to add all current products on the table to the cart.

Add selected to cart allows your customers to select a number of necessary products and add everything to the cart in one go.

Hide view cart link – you can hide a link “view cart” after customer added a product to the cart if you need.

Hide quantity input feature allows you to hide quantity input for add to cart button in the frontend.

Filters ↑ Back to top

Hide searching attributes from a table – if you have too many attributes or don’t want to show them in a table, you can hide them using this option, but still using the filter to search by.

Attention: you don’t need to add attributes as a column to make filters available. Selected filters will be displayed. If you will add some attribute as a column manually, it will not be hidden even is “Hide searching attributes from a table” is enabled.

Show as multiple drop-down or drop-down with a single select.

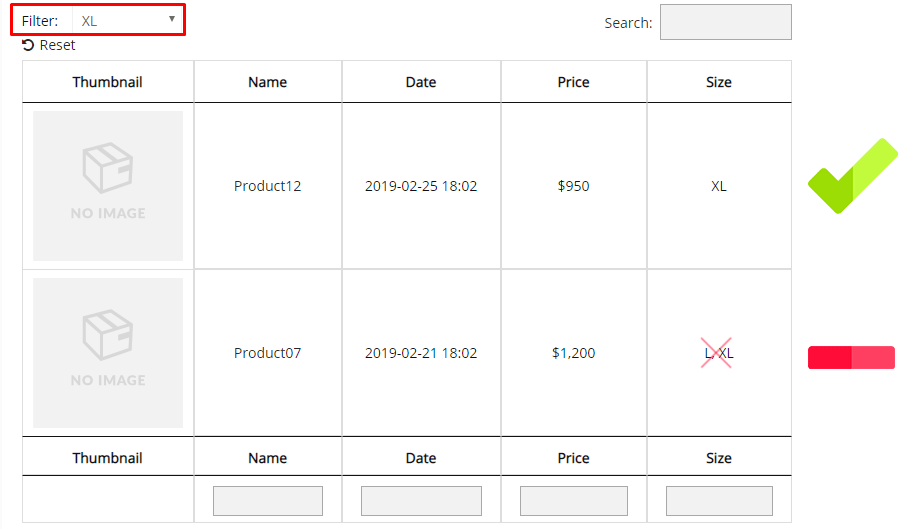

Search for a specific attribute – Results includes all products where the attribute exactly matches the search criteria, f.e:

Hide searching category from a table – if you don’t want to show them in a table, you can hide categories column using this option, but still using the filter to search by.

Attention: you don’t need to add the category as a column to make filters available. Selected filters will be displayed. If you will add the category as a column manually, it will not be hidden even is “Hide searching category from a table” is enabled.

Show as multiple drop-down or drop-down with a single select.

Category filter position – before or after the attribute filters.

Also, WooCommerce Product Table plugin will display the hierarchy of categories in the dropdown list.

  • Price filter works only with enabled price column.

Show as multiple drop-down or drop-down with a single select.

Set range – for manually settings press the “Setup” button and customize your price range settings. You may increase or decrease the number of steps and set different values for each step. Also, you can set the minimum and maximum price.

Product Table appearance ↑ Back to top

Here you can choose a visual style of the table.

  • Set the fixed table width in PX or %.
  • Select the thumbnail size from the list.
  • Manage width to hide columns on the mobile screens and set which columns should be hidden on the Content tab in the column options:

Choose a Responsive Mode for a table.

WooCommerce Tables are fully responsive and provide 4 different modes of Responsive design according to your needs:

  • standard
  • automatic column hiding
  • horizontal scroll
  • disabled responsivity

Check how the table looks link in the live preview on Desctop, Tablet and Mobile devices.

  • Borders.  Cell – adds a border around all four sides of each cell, Row – adds a border only over and under each row,  or select None.
  • Row Striping – add an automatic highlight for table odd rows. Useful if you have many rows that are difficult to separate visually. Row striping option will display rows background as two similar shades of colour.
  • Highlighting by mouse-hover adds row highlighting on mouseover and make browsing of the table more convenient.
  • Highlight Sorted Column – the currently sorted column will be highlighted.
  • Enable/disable table loader icon before the table will be completely loaded.
  • Choose a table Loader Icon and colour.

Custom table styling ↑ Back to top

Choose your custom table styles below. Any settings you leave blank will default to your theme styles.

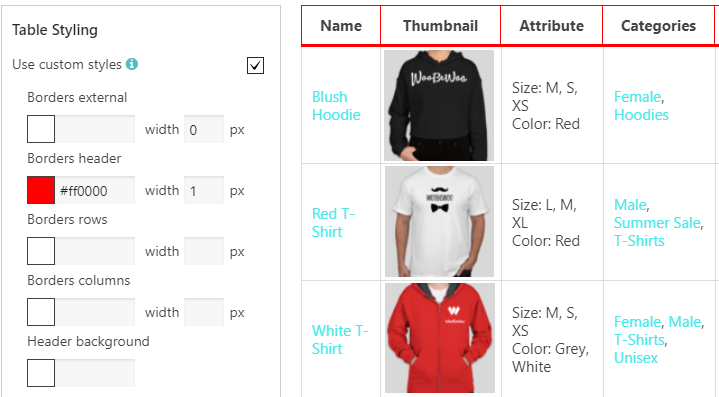

Borders external. Set the border colour and width in px:

Borders header. Set the colour and width for a header. These settings apply to a header, footer and “search by columns” field.

Borders rows   product table appearance settings

Borders columns

product table border rows

Header background. These settings apply to a header, footer and “search by columns” field.

product table header background

Header Font. Select the font for a header (the same for a footer), font size and colour:

product table header font

Cell background     product table cell background

Cell font.  Select the font for cells, font size and colour:

product table cell font

Search Bar Colors. Here you are able to set the colour of background, font and border:

product table search bar

Fixed Layout – set all columns of the same width.

Vertical alignment – set the vertical alignment of table cell contents.

Horizontal alignment – set the horizontal alignment of table cell contents.

Pagination Position – set pagination buttons position, left, centre, right.

Buy Button Styling ↑ Back to top

Choose your custom styles for button Add to cart. Any settings you leave blank will default.

Button type – text or icon.

If you select the “text” -you can overwrite the default button name, choose font and font size and colour, text-shadow (order: colour, X, Y, blur)

product table text button shadow

Or select the icon for the button. The same settings are available for an icon – icon size, colour, text-shadow.

icon style for buy button of product table

Button size – set width and height values in pixels (in that order).

product table button size

Background type – select the type of button you prefer from the list:

  • none
  • unicolored
  • bicoloured
  • simple gradient
  • pyramid gradient

product table buy button

Borders – set button Borders in this order: colour, top, right, bottom, left.

Button shadow – set button shadow in this order: colour, X, Y, blur, spread.

Padding – set the padding for button content in this order: top, right, bottom, left.

Product table appearance

Overwrite Product Table Text ↑ Back to top

Here you can change the settings of service text in your table:

  • Multiple add selected to cart button text
  • Empty table
  • Table info text
  • Empty info text
  • Filtered info text
  • Length text
  • Search label
  • Zero records
  • Filer text
  • Reset text
  • Stock quantity items text
  • Previous page (Pagination)
  • Next page (Pagination)
  • Select attributes text

CSS editor ↑ Back to top

Here you can add custom CSS for the current Table.

Questions & Support ↑ Back to top

Have a question before you buy? Please fill out this pre-sales form.

Already purchased and need some assistance? Get in touch with support via the help desk.
